Aluminium/Steel blind rivets large and extra-large heads

Home / Catalog / Fasteners locks : 1/4 turns / Blind Rivets / Large and Extra-Large Blind Rivets / Aluminium/Steel blind rivets large and extra-large heads

Description Technical sheet

PAINTED RIVETS: CONSULT US

D4:for holes D4.1 (R.cut: 1400N - R.stretch: 2000N)
D4.8:for holes D5 (R.cut: 2000N - R.stretch: 2700N)
D5:for holes D5.1 (R.cut: 2000N - R.stretch: 2700N)

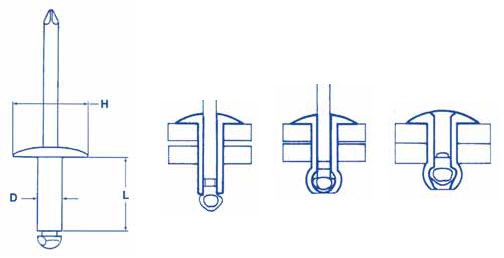

D	L	H	GRIP RANGE	REFERENCES
4	8	10	3 to 4	ALTL/AC 40 80
4	9	10	4 to 5	ALTL/AC 40 90
4	10	10	5 to 6.5	ALTL/AC 40 100
4	11	10	6.5 to 7.5	ALTL/AC 40 110
4	12	10	7.5 to 8.5	ALTL/AC 40 120
4	14	10	8.5 to 10.5	ALTL/AC 40 140
4	16	10	10.5 to 12.5	ALTL/AC 40 160
4	18	10	12.5 to 14.5	ALTL/AC 40 180
4	20	10	14.5 to 16.5	ALTL/AC 40 200
4	10	12	5 to 7.5	ALTEL/AC 40 100
4	12	12	7.5 to 8.5	ALTEL/AC 40 120
4	14	12	8.5 to 10.5	ALTEL/AC 40 140
4	16	12	10.5 to 12.5	ALTEL/AC 40 160
4	18	12	12.5 to 14.5	ALTEL/AC 40 180
4	20	12	14.5 to 16.5	ALTEL/AC 40 200
4	22	12	16.5 to 18.5	ALTEL/AC 40 220
4.8	9	14	0.5 to 3.5	ALTLL/AC 48 90
4.8	10	14	3.5 to 6	ALTLL/AC 48 100
4.8	11	14	6 to 7	ALTLL/AC 48 110
4.8	12	14	7 to 8	ALTLL/AC 48 120
4.8	14	14	8 to 10	ALTLL/AC 48 140
4.8	16	14	10 to 12	ALTLL/AC 48 160
4.8	18	14	12 to 14	ALTLL/AC 48 180
4.8	20	14	14 to 16	ALTLL/AC 48 200
4.8	22	14	16 to 18	ALTLL/AC 48 220
4.8	25	14	18 to 21	ALTLL/AC 48 250
4.8	30	14	21 to 251	ALTLL/AC 48 300
4.8	35	14	25 to 30	ALTLL/AC 48 350
4.8	12	16	7 to 8	ALTEL/AC 48 120
4.8	14	16	8 to 10	ALTEL/AC 48 140
4.8	16	16	10 to 12	ALTEL/AC 48 160
4.8	18	16	12 to 14	ALTEL/AC 48 180
4.8	20	16	14 to 16	ALTEL/AC 48 200
4.8	22	16	16 to 18	ALTEL/AC 48 220
4.8	25	16	18 to 21	ALTEL/AC 48 250
4.8	30	16	21 to 251	ALTEL/AC 48 300
4.8	35	16	25 to 30	ALTEL/AC 48 350

* Articles made on request
