Hinge steel-stainless steel

Home / Catalog / Hinges / Cabinet Hinges / Hinge steel-stainless steel
  • Cabinet Hinges Hinge Steel-stainless Steel 1
  • Cabinet Hinges Hinge Steel-stainless Steel 2
Description
Can be fitted in place of special branch hinge
Could be produced with differents length : contact us

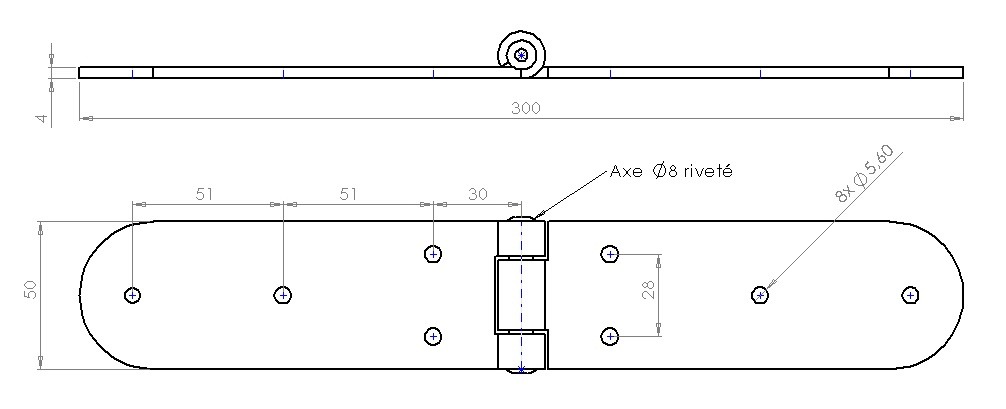

Download IGS file
FIXATIONMATERIALFINISHTHEORETICAL
WEIGHT
kg/hundred
REFERENCES
8 Smooth Holes steelWhite zinc54,000CC.435-ZI
Countersunk Holes steelWhite zinc42,000CC.435-BZI*
8 Smooth HolesStainless steelraw54,000CC.435-IB*
8 Countersunk Holes Stainless steelraw54,000CC.435-BIB*
* Articles made on request
