Standard carrying handle
Home
/
Catalog
/
Handles / Slinging / Liftings slings / Back Plates
/
Standard Carrying Handles
/ Standard carrying handle
Description
Technical sheet
Supplements

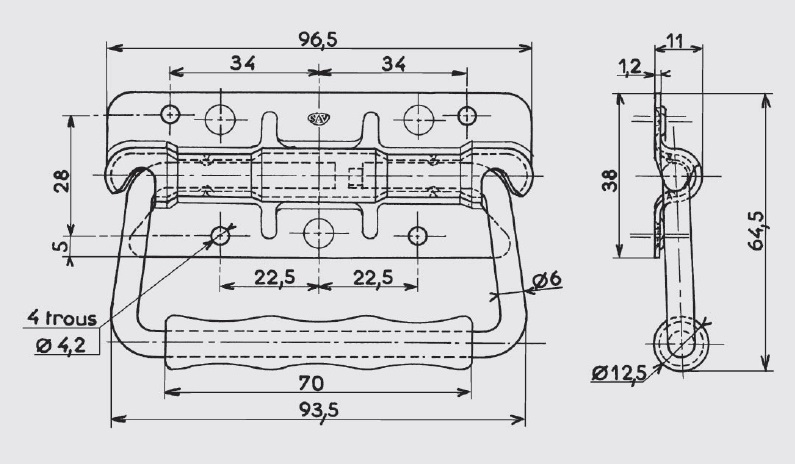

Platinum: stamped, metal 12/10e, 4 fixing holes Ø 4,2 mm or undrilled for welding
Ring: Round wire Ø 6 mm, over-molded polyethylene sleeve
The ring is integral with the plate
Maxi load per handle (Steel): 40 kg- ( Alu): 20 kg.
Heat resistance: 100°C.
Consul us for any material or finish not listed in the table below
Download IGS file
MATERIAL
FINISH
FIXATION
THEORETICAL
WEIGHT
kg/hundred
REFERENCES
Steel
raw
with holes
8,600
PO.304-BR
Steel
raw
without hole
8,660
PO.304-ABR
Steel
yellow zinc coating
with holes
8,600
PO.304-ZB*
Steel
white zinc coating
with holes
8,600
PO.304-ZI
Steel
chrome-plated
with holes
8,600
PO.304-CH*
Alloy light
raw
with holes
3,200
PO.304-AL
Stainless steel 18/8
raw
without hole
8,600
PO.304-AIB
Stainless steel 18/8
raw
with holes
8,660
PO.304-IB
Stainless steel 18/8
polished
with holes
8,600
PO.304-IP*
* Articles made on request
