Standard carrying handle
Home
/
Catalog
/
Handles / Slinging / Liftings slings / Back Plates
/
Standard Carrying Handles
/ Standard carrying handle
Description
Technical sheet
Supplements

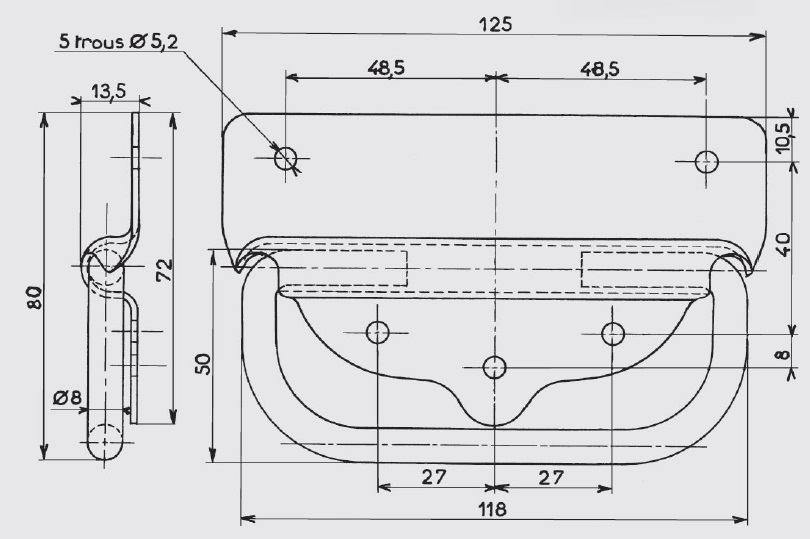

Platinum: metal 15/10e, 5 fixing holes Ø 5,2 mm or undrilled for welding
Ring: Round wire Ø 8 mm
The plate and the ring are not integral. Order the 2 references for 1 complete handle
Maxi load per handle: 60 kg .
Consul us for any material or finish not listed in the table below
Download IGS file
MATERIAL
FINISH
FIXATION
THEORETICAL
WEIGHT
kg/hundred
RING REFERENCE
PLATE REFERENCE
Steel
raw
with holes
17,600
PO.306-EBR
PO.306-BR
Steel
raw
with holes
17,750
PO.306-EBR
PO.306-ABR
Steel
yellow zinc coating
with holes
17,600
PO.306-EZB*
PO.306-ZB*
Steel
white zinc coating
with holes
17,600
PO.306-EZI
PO.306-ZI
Stainless steel
stainless steel
raw
18,100
PO.306-EIB
PO.306-IB
* Articles made on request
