Standard carrying handle - Countersunk holes

Description Technical sheet

Flat plate Thickness 1.5mm, 3 countersunk holes Ø 5 mm.
2 ring supports
Ring: steel wire
The plate and the ring are integral.

Light duty handle (40 kg in use, 90 kg before deformation).

Specific flat plate for flexible materials, cardboards
Multipurpose use.
90° ring lock.
Can be mounted on top of a package.

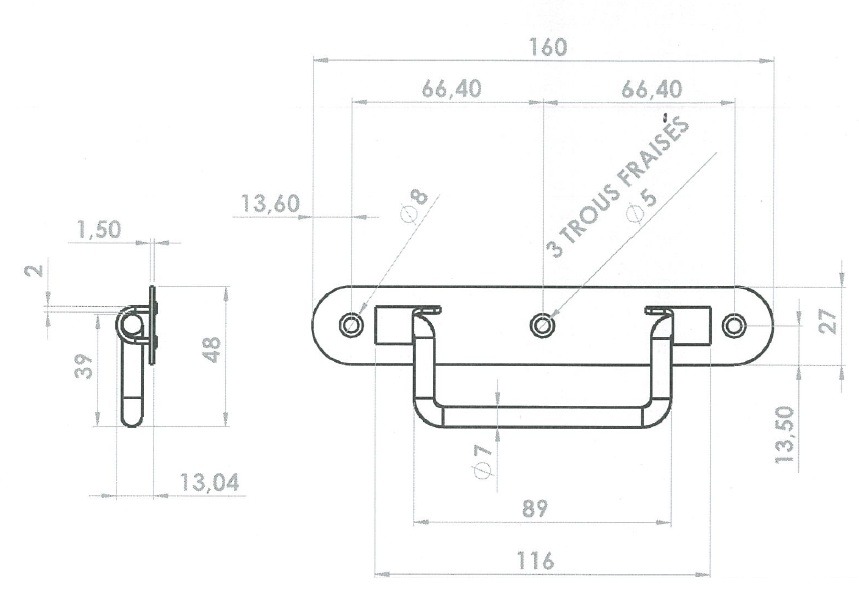

MATERIAL	FINISH	A	B	C	D	E	F	G	THEORETICAL WEIGHT kg/cent	REFERENCES
Steel	raw	160	89	66,4	27	7	14,5	48	11,400	PO.309-IBR*
Steel	White zinc	160	89	66,4	27	7	14,5	48	11,400	PO.309-IZI
Stainless steel 18/8	brut	160	89	66,4	27	7	14,5	48	11,400	PO.309-IIB*

* Articles made on request
